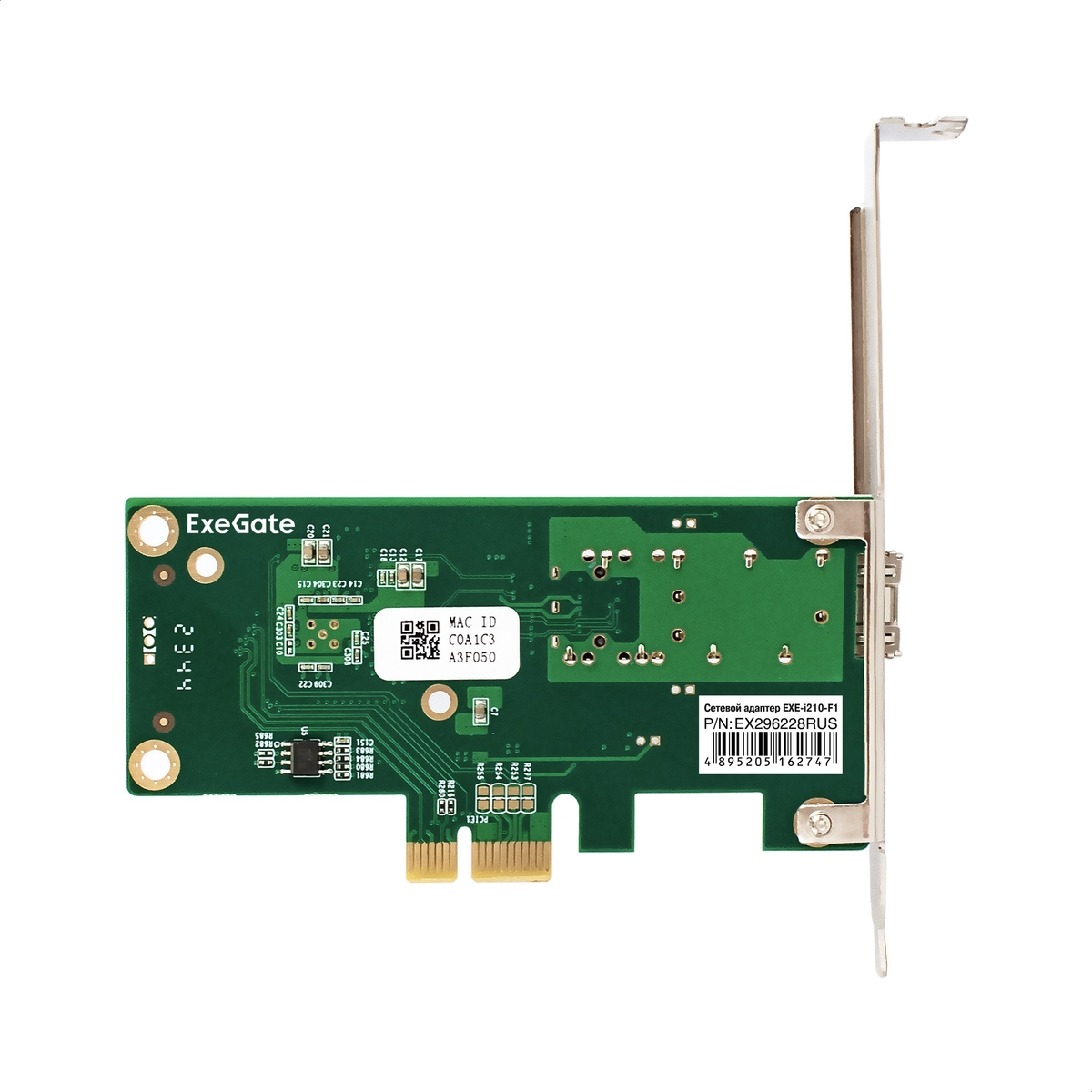

Set ExeGate EXE-i210-F1 + Transceiver EXT-1G-MM850-LC2-550M
| Modification | P/N | EAN |
| EX296228 | 4895205162747 | |
| EX298935 | 4895205185357 | |
| EX298936 | 4895205185364 |
Specification
| Gigabit NIC | |
| Type | Ethernet NIC |
| Chipset | Intel i210 |
| Interface | PCIe x1 v2.0 |
| External Interface | SFP |
| Number of connectors | 1 |
| IEEE Standards | IEEE 802.3az |
| Transmission rate | 1000/100/10M |
| Support Wake-on-LAN | Yes |
| System | Windows 10, Windows 11, Windows Server 2016, Windows Server 2019, Windows Server 2022, Linux |
| Sertification | FCC, CE, RoHS |
| LED Indicators | Yes |
| Transceiver | |
| Fiber Media Support | Multi-Mode |
| Maximum Distance Capacity | 550m (OM3) |
| Hot Pluggable | yes |
| DDM (Digital Diagnostics Monitoring) | yes |
| MSA Compliant | yes |
| Speed | 1.25 Gbps |
| Connector | Duplex LC/UPC connector |
| Single/Bi Direction | Single-direction |
| Wavelength | 850 nm |
| Output Optical Power (TX Optical Power) | -9~-3dBm |
| Input Optical Power (RX Optical Power) | -17~-3dBm |
| Sensitivity | -17dBm |
| Cable Type | Multi-mode 50/125 um or 62.5/125 um fibre |
| Power / Maximum Input Current | 3.3 V: 300 mA |
| EMI | CE, FCC, VCCI, UL, TUV, CDRH |
| Other | |
| Operating Temperature | 1~+55 °C |
| Storage Temperature | -40~+70 °C |
| Storage humidity | 5-90% (without condesation) |
| Delivery set | 1x NIC, 1 x Low profile bracket, transceiver |
| Driver |  Download |
